Duplex 2205 Pipes, Duplex 2205 Tubes, Duplex 2205 Fittings, Duplex 2205 Rods, Duplex 2205 Fasteners, Duplex 2205 Plates, Duplex 2205 Flanges
Manufacturer, exporter & suppliers of ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes, ASTM A790 S32750 2507 SMLS Super Duplex Stainless Steel Pipe, ASTM A790 2205 Duplex Stainless Steel Pipes, Duplex Steel Seamless Pipes, ASTM A 789 / 790 ASME SA 789 / 790
ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes sizes & stock
| PIPE TUBE TYPE | NB SIZES | SCH 5 | SCH 10 | SCH 40 | SCH 80 | SCH 160 |
|---|---|---|---|---|---|---|
| ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes |
1/8"
|
 |
|
|
|
|
| ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes |
1/4"
|
|
|
|
|
|
| ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes |
3/8"
|
|
|
|
|
|
| ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes |
1/2"
|
|
|
|
|
|
| ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes |
3/4"
|
|
|
|
|
|
| ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes |
1"
|
|
|
|
|
|
| ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes |
1 1/4"
|
|
|
|
|
|
| ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes |
1 1/2"
|
|
|
|
|
|
| ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes |
2"
|
|
|
|
|
|
| ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes |
2 1/2"
|
|
|
|
|
|
| ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes |
3"
|
|
|
|
|
|
| ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes |
4"
|
|
|
|
|
|
| ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes |
5"
|
|
|
|
|
|
| ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes |
6"
|
|
|
|
|
Contents:
- ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes
- ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes Dimensional Range & specification
- ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes sizes & stock
- ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes price
- ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes manufacturing process
- Welded and Seamless Steel Pipe Chart
- Dimensions of tubes and pipes
- ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes useful info
- ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes brand manufacturers

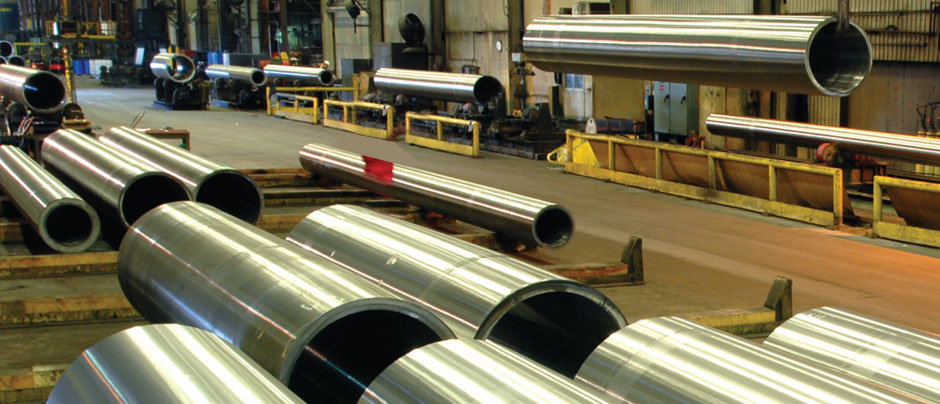

ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes
With the largest and most comprehensive pipe and tubing extrusion capability in the world, Ashtapad Overseas offers the widest variety of materials and sizes for all of your applications. Ashtapad serves the Power Generation market with transfer pipe, boiler tube, main steam pipe, hot re-heat pipe, flue gas desulphurization units and other products for nuclear, coal-fired, renewable and combined cycle applications & for the oil and gas industry, we offer ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes, seamless and welded pipe and tubing for a variety of applications including OCTG and mechanical tubing, co-extruded clad line pipe, umbilical and control lines, and process piping.
The environment management system of the company is certified according to the requirements of ISO 9001:2008, 14001, 18001 & PED. Few of the major brands we represent are Arcelor Mittal, Sumitomo, Tenaris, Benteler, Jazeera Steel, Hyundai HYSCO, Arabian Pipes Company, Froch, etc. Our materials are approved by Saudi ARAMCO, SABIC, SHELL, ADNOC, GASCO, PDO, KNPC, KOC, QATAR Gas, SGC etc.
Ashtapad offers a wide range of ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes, 316 Seamless Tubing, 316 Seamless Pipe, ss 316l Seamless Pipe, 304 Seamless Tube, 304 Seamless Stainless Steel Tubing & Hydraulic Tube etc. We can meet most ASME, ASTM, AMS, and military specifications, and can cross-reference to most international standards, including full DIN 3.1b, full 3.1/3.2 Certifcation and NACE requirements.
ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes Dimensional Range & Standard Specification
Specification:
| Duplex 2205 Pipe & Tube | |
|---|---|
| Standards | Seamless Pipe & Tube |
| ASTM | A 789 / 790 |
| ASME | SA 789 / 790 |
Origin: West Europe / Japan / Indian / USA / Korean
ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes Dimensional Range:
Looking for a ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes supplier that offers quality products with fast turn around times at competitive prices? If so, you’ve come to the right place. Our products, including Nickel 600 and Alloys 625, 718, seamless stainless steel and X750 are stored and pulled directly from warehouses. We stock and sell ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes, this alloy is also available in form of Flat Bar, Forging Stock, Hexagon, Plate, Round Bar, Sheet, Strip and Wire. All the alloys are high temperature/corrosion resistant alloys that are often used in the aerospace industry.
|
ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes
|
||||
|
Sr. No.
|
Material
|
Size
|
Sch.
|
Specification
|
|---|---|---|---|---|
|
1
|
ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes
|
15 NB |
Sch. 10
Sch. 40 Sch. 80 Etc. |
IS
BS ASTM UNS |
| Trade Name | ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes |
|---|---|
| In Form of | Round etc. |
| In Length of | Standard & Cut length |
| Value Added Service | Draw & Expansion as per required Size & Length Bending Annealed & Pickled Machining Etc. |
| Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection . |
| Specialize | Cupro Nickel Tube |
All materials supplied by Ashtapad Overseas will meet or exceed ASTM, ASME, ANSI and/or API standards, per your required specifications including full documentation.
We have more than 1200 tons of ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes in ready stock for immediate dispatch in our stockyard. Also we provide value addition to the client in the form of cut to length size, slitting, shaping, and fabrication, superior finishing, marking, beveled end, specialized cap protection.
We are specialized in:
- Flanges according to ASTM A182 Grade F304, F304L F316L
- Pipes according to ASTM A312 Grade TP304, TP304L, TP3016L
- Fittings according to ASTM A403 Grade WP304, WP304L, WP316L
Hot Products: Type 304 | Type 304L | Type 304H | Type 316 | Type 316L | Type 316H | Type 317L | Type 321 | Type 347 | Type 410 | Type 904L | UNS S32750 Duplex | UNS S32205 Duplex | UNS S31803 Duplex
The seamless steel pipe manufacturing process starts with a solid, round steel billet. This billet is then heated to great temperatures and stretched and pulled over a form until it takes the shape of a hollow tube. As other steel pipe suppliers will tell you, there are three great advantages to making a pipe in this way. A seamless stainless steel pipe or tube can pass through as many as 100 production steps before taking its final form and quality.
Advantages of ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes
- The main perceived advantage of seamless pipes is that they don’t have a weld seam. Traditionally, the seam of welded pipes has been viewed as a weak spot, vulnerable to failure and corrosion. For many years, this fear was probably justified. However, in recent years improvements in the manufacturing process for welded steel pipes and other welded pipes have boosted the strength and performance of the weld seam to levels indistinguishable from that of the rest of the pipe.
- Seamless pipes provide peace of mind. Although there should be no issues with the seams of welded pipes supplied by reputable manufacturers, seamless pipes prevent any possibility of a weak seam.
- Seamless pipes have better ovality, or roundness, than welded pipes.
ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes price
Useful Information:
DUPLEX 2205
ASTM A 182, A 240, A 276,
A 789, A 790, A 815
UNS S31803, S32205
NACE MR0175
Forms of Duplex 2205
- Sheet
- Plate
- Bar
- Pipe & Tube (welded, seamless)
- Fittings (i.e. flanges, slip-ons, blinds, weld-necks, lapjoints, long welding necks, socket welds, elbows, tees, stub-ends, returns, caps, crosses, reducers, and pipe nipples)
- Welding Wire and Welding Electrode
2205 Duplex Overview
Duplex 2205 is a nitrogen enhanced duplex stainless steel that was developed to combat common corrosion problems encountered with the 300 series stainless steels. “Duplex” describes a family of stainless steels that are neither fully austenitic, like 304 stainless, nor purely ferritic, like 430 stainless. The structure of 2205 duplex stainless steel consists of austenite pools surrounded by a continuous ferrite phase. In the annealed condition, 2205 contains approximately 40-50% ferrite. Often referred to as the work horse grade, 2205 is the most widely used grade in the duplex family of stainless steels.
The advantage of a duplex structure is that it combines the favorable qualities of a ferritic alloy (stress corrosion cracking resistance and high strength) with those of an austenitic alloy (ease of fabrication and corrosion resistance).
Usage of 2205 Duplex stainless steel should be limited to temperatures below 600° F. Extended elevated temperature exposure can embrittle 2205 stainless.
Corrosion Resistance
2205 duplex stainless steel is a cost effective solution for many applications where the 300 series stainless steels are susceptible to chloride stress corrosion cracking. Stress corrosion cracking occurs when stainless steels are subjected to tensile stress, while in contact with solutions containing chlorides. Increasing temperatures also increase the susceptibility of stainless steels to stress corrosion cracking.
The combination of chromium, molybdenum and nitrogen convey the good resistance of 2205 to chloride pitting and crevice corrosion. This resistance is extremely important for services such as marine environments, brackish water, bleaching operations, closed loop water systems and some food processing applications. The high chromium, molybdenum and nitrogen contents of 2205 provide corrosion resistance superior to common stainless steels, such as, 316L and 317L in most environments.
Chemical Composition, %
|
Cr |
Ni |
Mo |
C |
N |
|---|---|---|---|---|
|
22.0-23.0 |
4.50-6.50 |
3.00-3.50 |
.030 Max |
0.14-0.20 |
|
Mn |
Si |
P |
S |
Fe |
|
2.00 Max |
1.00 Max |
.030 Max |
.020 Max |
Balance |
ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes features:
- High resistance to chloride stress corrosion cracking
- Resistance to chloride pitting and crevice corrosion
- Good general corrosion resistance
- Good sulfide stress corrosion resistance
- High Strength
- Good weldability and workability
Where ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes is used:
- Chemical process vessels, piping and heat exchangers
- Pulp mill digesters, bleach washers, chip pre-steaming vessels
- Food processing equipment
- Oil field piping and heat exchangers
- Flue gas desulfurization equipment
Standards:
- ASTM/ASME: A240 UNS S32205/S31803
- EURONORM: 1.4462 X2CrNiMoN 22.5.3
- AFNOR: Z3 CrNi 22.05 AZ
- DIN: W.Nr 1.4462
Corrosion Resistance:
- Due to its high chromium, molybdenum, and nitrogen content, Duplex 2205 demonstrates superior corrosion resistant properties to 316 and 316L in most environments
- Chromium, molybdenum, and nitrogen content also provide high resistance to pitting and crevice corrosion, even in oxidizing and acidic solutions
- Resistant to chloride stress corrosion cracking and temperatures of up to about 302°F (150°C)
- The presence of ferrite provides for good performance of Duplex 2205 in caustic environments
Heat Resistance:
- Similar to other duplex stainless steels, Duplex 2205 has good oxidation resistance at high temperatures
- Subject to embrittlement when exposed to temperatures above 572°F (300°C) even when exposed for short periods of time; Duplex 2205 is therefore not recommended for use above 572°F (300°C)
Welding Characteristics:
- Possesses good weldability
- Should not generally be welded without filler metal as this may result in excessive ferrite
Heat Treatment:
- Annealing temperature range is 1868 to 2012°F (1020 to 1100°C)
- Cannot be hardened by heat treatment – but Duplex 2205 does work-harden
- Special consideration is needed to compensate for a higher coefficient of thermal expansion to avoid warping and distortion
Processing – Hot Forming:
Most Duplex 2205 producers recommend a maximum hot forming temperature between 2010 and 2100°F (1100 to 1150°C). If the shape of the work piece is not compact, the edges may be significantly cooler than the bulk, and there is risk of cracking in the cooler regions.
Processing – Cold Forming:
Duplex 2205 has shown good formability in a variety of fabrications. The high strength of Duplex 2205 can pose problems. Even when the equipment has sufficient power, allowance must be made for higher spring-back caused by the grade’s high strength.
Machinability:
Duplex 2205 is somewhat more difficult to machine than the 300 series austenitic stainless steels. Higher cutting forces are required and more rapid tool wear is typical. Some guidelines for machining are: A) Use powerful, rigid machines with extremely strong rigid mounting of tools and work piece, B) Minimize vibration by keeping the tool extension as short as possible, C) Use a nose radius on the tool, no longer than necessary, for carbides that have a sharp edge while still providing adequate strength, D) Design machining sequences to always provide for a depth of cut below the work hardened layer resulting from the previous passes.
ASTM Specifications
|
Pipe Smls |
Pipe Welded |
Tube Smls |
Tube Welded |
Sheet/Plate |
Bar |
Flanges, Fittings & Valves |
|---|---|---|---|---|---|---|
|
A790 |
A790 |
A789 |
A789 |
A240 |
A276 |
A182 |
Mechanical Properties
Specified Tensile Properties ASTM A240
| Grade | Tensile Strength ksi (min) |
Yield Strength 0.2% ksi (min) |
Elongation % | Hardness (HB) MAX |
|---|---|---|---|---|
| 2205 | 90 | 65 | 25 | 217 |
Chemical Properties:
| C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|
| 2205 (S31803) |
0.03 max |
2.0 max |
1.0 max |
0.03 max |
0.02 max |
min: 21.0 max: 23.0 |
min: 2.5 max: 3.5 |
min: 4.5 max: 6.5 |
min: 0.08 max: 0.20 |
| 2205 (S32205) |
0.03 max |
2.0 max |
1.0 max |
0.03 max |
0.02 max |
min: 22.0 max: 23.0 |
min: 3.0 max: 3.5 |
min: 4.5 max: 6.5 |
min: 0.14 max: 0.20 |
Physical Properties:
| Density lbm/in3 |
Electrical Resistivity mW•in |
Thermal Conductivity (BTU/hr•ft•°F) |
Heat Capacity BTU/lbm•°F |
Electrical Resistivity (in x 10-6) |
|
|---|---|---|---|---|---|
| at 68°F | 0.278 | 27.6 | 8.7 | 0.112 | 33.5 |
| at 212°F | 26.1 | 9.2 | 0.119 | 35.4 | |
| at 392°F | 25.4 | 9.8 | 0.127 | 37.4 | |
| at 572°F | 24.9 | 10.4 | 0.134 | 39.4 |
Physical Properties of Duplex 2205 Alloys in the Annealed Condition at -20°F to +100°F
| Tensile Strength | Yield Strength | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Alloy | UNS Designation | Spec. | psi | MPa | ksi | psi | MPa | ksi | Elongation in 2 in. (min.) % | Grain Size Req. | Max. Hardness | Modulus of Elasticity (x106psi) | Mean Coefficient of Thermal Expansion (IN./IN./°F x 10-6) | Thermal Conductivity (BTU-in/ ft2-h-°F) |
| Duplex 2205 | S32205 | A789, A790 | 95,000 | 655 | 95 | 70,000 | 485 | 70 | 30 | — | 28 Rc, 30* Rc |
27.5 | 7.6 | 180 |
| Duplex 2205 | S31803 | A789, A790 | 90,000 | 620 | 90 | 65,000 | 450 | 65 | 30 | — | 28 Rc, 30* Rc |
27.5 | 7.6 | 180 |
Composition of Duplex 2205 tubing and pipe
| Grade | Duplex 2205 |
|---|---|
| UNS Designation | S31803/S32205* |
| Carbon (C) Max. | 0.030 |
| Manganese (Mn) Max. | 2.00 |
| Phosphorous (P) Max. | 0.030 |
| Sulphur (S) Max. | 0.020 |
| Silicon (Si) Max. | 1.00 |
| Chromium (Cr) | 22.0 – 23.0 |
| Nickel (Ni) | 4.5 – 6.5 |
| Molybdenum (Mo) | 3.0 – 3.5 |
| Nitrogen (N) | 0.14 – 0.20 |
| Iron (Fe) | Bal. |
| Copper (Cu) | — |
| Other Elements | N/A |
Physical Properites of Alloys for Seamless Tubing
| Alloys | UNS Designation | ASTM Specification | Tensile Strength (min.) | Yield Strength 0.2% Offset (min.) | |
|---|---|---|---|---|---|
| MPa | ksi | Mpa | |||
| 304 | S30400 | A213, A269, A312, A632 | 515 | 75 | 205 |
| 304L | S30403 | A213, A269, A312, A632 | 485 | 70 | 170 |
| 304H | S30409 | A213, A269, A312, A632 | 515 | 75 | 205 |
| 310S | S31000 | A213, A269, A312, A632 | 515 | 75 | 205 |
| 316 | S31600 | A213, A269, A312, A632 | 515 | 75 | 205 |
| 316L | S31603 | A213, A269, A312, A632 | 485 | 70 | 170 |
| 316H | S31609 | A213, A269, A312, A632 | 515 | 75 | 205 |
| 317 | S31700 | A213, A269, A312, A632 | 515 | 75 | 205 |
| 317L | S31703 | A213, A269, A312, A632 | 485 | 70 | 170 |
| 321 | S32100 | A213, A269, A312, A632 | 515 | 75 | 205 |
| 347 | S34700 | A213, A269, A312, A632 | 515 | 75 | 205 |
| Duplex 2205 | S31808 | A789 | 620 | 90 | 450 |
| 400 | N04400 | B165 | 480 | 70 | 195 |
| 600 | N06600 | B163 | 550 | 80 | 240 |
| 625 GR 1 (Annealed) | N06625 | B444 | 827 | 120 | 414 |
| 625 GR 2 (Solution Annealed) | N06625 | B444 | 827 | 120 | 276 |
| 800 | N08800 | B163 | 520 | 75 | 205 |
| 825 | N08825 | B423 | 586 | 85 | 240 |
Our worldwide presence:
Cities We Deliver To: Mumbai, Bengaluru, Chennai, New Delhi, Pimpri-Chinchwad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Pune, Kolkata, Gurgaon, Navi Mumbai, Ahmedabad, Tehran, Calgary, Noida, Riyadh, Vadodara, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Thane, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, Surat, Bhopal, Ulsan, Faridabad, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo
Countries We Deliver To: India, United States, United Arab Emirates, Canada, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Saudi Arabia, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Angola, Argentina, Austria, Azerbaijan, Bangladesh, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia
Europe: Germany, Netherlands, Russia Finland, Czech, Ukraine, Italy, Spain, Poland
Middle East:Iran, UAE, SA, Iraq, Qatar, Isreal, Jordan, Bahrain, Kuwait
South America:Brazil, Chile, Peru, Venezuela, Uruguay, Argentina
Africa: Egypt, South Africa, Nigeria
Central & North America:Mexico, US, Canada, Costa Rica
South East Asia and Pacific:Japan, South Korea, Singapore, Thailand, Indonesia, Australia
ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes brand manufacturers
- Sumitomo ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes | Sumitomo Metals, Japan
- Nippon ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes | Nippon Steel Corporation, Japan
- Kobe ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes | Kobe Special Tube, Japan
- Sanyo ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes | Sanyo Special Steel, Japan
- Tubacex ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes | Tubacex Tubos Inoxidables S.A., Spain
- Schoeller ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes | Schoeller Bleckmann, Austria
- Seah ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes | Seah Steel Corporation, Korea
- Special Metals alloys ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes | Special Metals alloys, USA
- ASTM A789 UNS 32750 Duplex Stainless Steel Pipes & Tubes
Ashtapad Overseas
Address: 204, 2nd Floor,Gods Gift Tower,
1st Carpenter Street, Mumbai – 400004, Maharashtra, India.
Tel: +91-22-23841700, 67437666, 66595333
Email: ashtapad@vsnl.net
Website: www.ashtapadoverseas.com
Fax: +91-22-23868298
Australia
